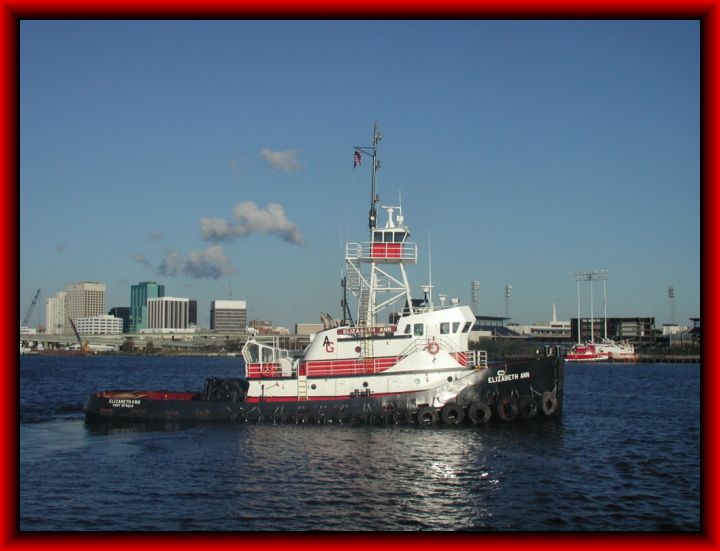

Elizabeth Ann





The “Elizabeth Ann” tug was purchased by Norfolk Dredging Company in 1999. The Elizabeth Ann is a  3000 horsepower sea going tug.

Elizabeth Ann Specification



Official Number: 652898
Type: Model Bow
Year Built: 1982, Major Rebuild in 2004
Home Port: Norfolk, VA
Gross Tonnage: 178
Length: 105
Width: 32
Depth: 15
Draft: 12 feet 11 inches
Speed: 12 Knots
ABS: ABS International Load Line Assignment
Propellers: Two (2) SS 4-Blade, 100” x 100” in Kort Nozzles
Fuel Capacity: 103,800 Gallons
Lube Oil Capacity: 1,860 Gallons
Water Capacity: 8,846 Gallons
Main Propulsion: Two EMD 12-567 C ,  12 Cylinder Diesels, 1500 HP each
Horsepower: 3000
Towing Winch: SMATCO 56-DPDT-170 WITH 2000’ of 2” IWRC tow wire on each drum with anchor handling capabilities and 200,000 lbs line pull.
Reduction Gear: REINTJES WAV 1850, 5:1 Ratio
Electronics: 1 Saab AIS Navigation System, 1 SIMRAD GC-80 Gyro compass w/ SIMRAD AP50 Auto Pilot, 3 Furuno Radars Model FR-8122,  ICOM Digital Marine Single Side Band model IC-M802, 5VHF’s, 3 GPS’s, 3 Loud Hailers, 1 Cellular Phone, 1 Satellite phone w/fax, 2 Depth Sounders, and 2 Magnetic Compasses
